SMSL M100 MKII Audio DAC USB XMOS XCore200XU208 PCM768k/DSD512 Native DSD

Regular price $195.99

SMSL M100 MKII Audio DAC USB XMOS XCore200XU208 PCM768k/DSD512 Native DSD SABRE9018Q2C THD 0.0003% Audio decoder



SMSL M100 MKII(New verison)
1. The front panel is the same as the M100, and a PSE logo is added to the rear panel
2. MKII is added to the carton
3. The internal PCB board is completely different
4. The MKII upgraded version adopts the second-generation XMOS solution XCore200XU208 + the  SABRE9018Q2C design of American ESS Company
The features of ESS’s SABRE9018Q2C chip are as follows:
SABRE9018Q2C is the original model of ESS, which is highly recognized in the HiFi audio market, and many products are widely used. It is suitable for use in smart product projects such as Blu-ray players, preamplifiers, professional AV receivers, etc. Its main performance characteristics are as follows:
121dB dynamic range (DNR)
-115dB THD+N
(DNR of up to 121dB and THD+N of –115dB, a performance level that will satisfy the most demanding audio enthusiasts)

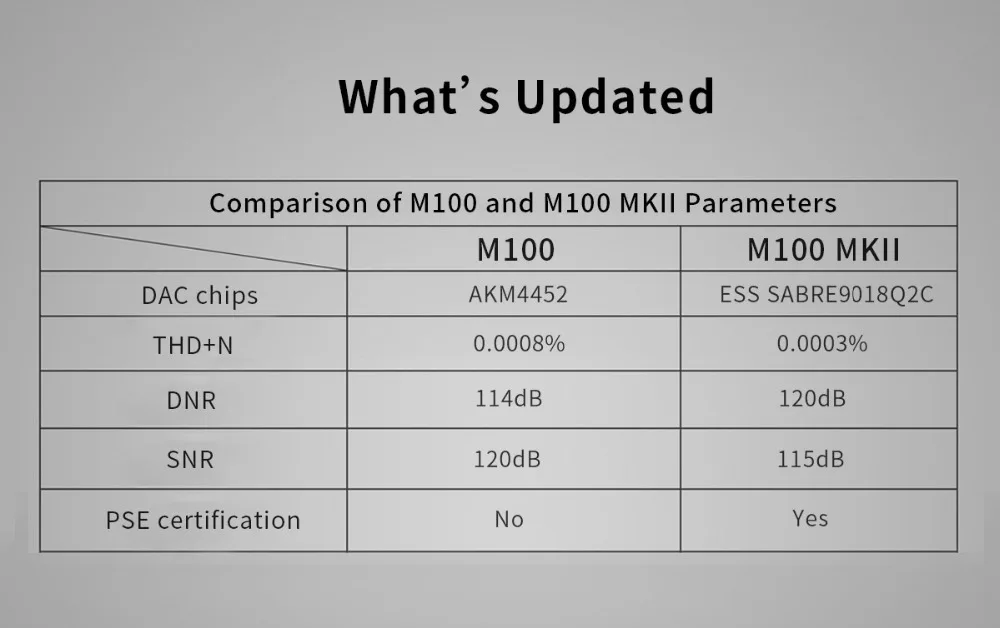

5. Performance and indicators are greatly improved, THD is as low as 0.0003%, compared to 0.0008% in the old version

other:
Using the second-generation XMOS solution ---XCore200XU208, it supports up to PCM768k/DSD512, and the exclusive custom driver supports Native DSD, which is in the leading position in the industry.
Use the US ESS SABRE9018Q2C high dynamic range, low distortion, high specification decoder chip, support 32bit processing





Type: Desktop
DSD Sampling Frequencies: 2.8224 MHz (DSD64)
DSD Sampling Frequencies: 5.6448 MHz (DSD128)
DSD Sampling Frequencies: 11.2896 MHz (DSD256)
DSD Sampling Frequencies: 22.5792 MHz (DSD512)
Certification: CE

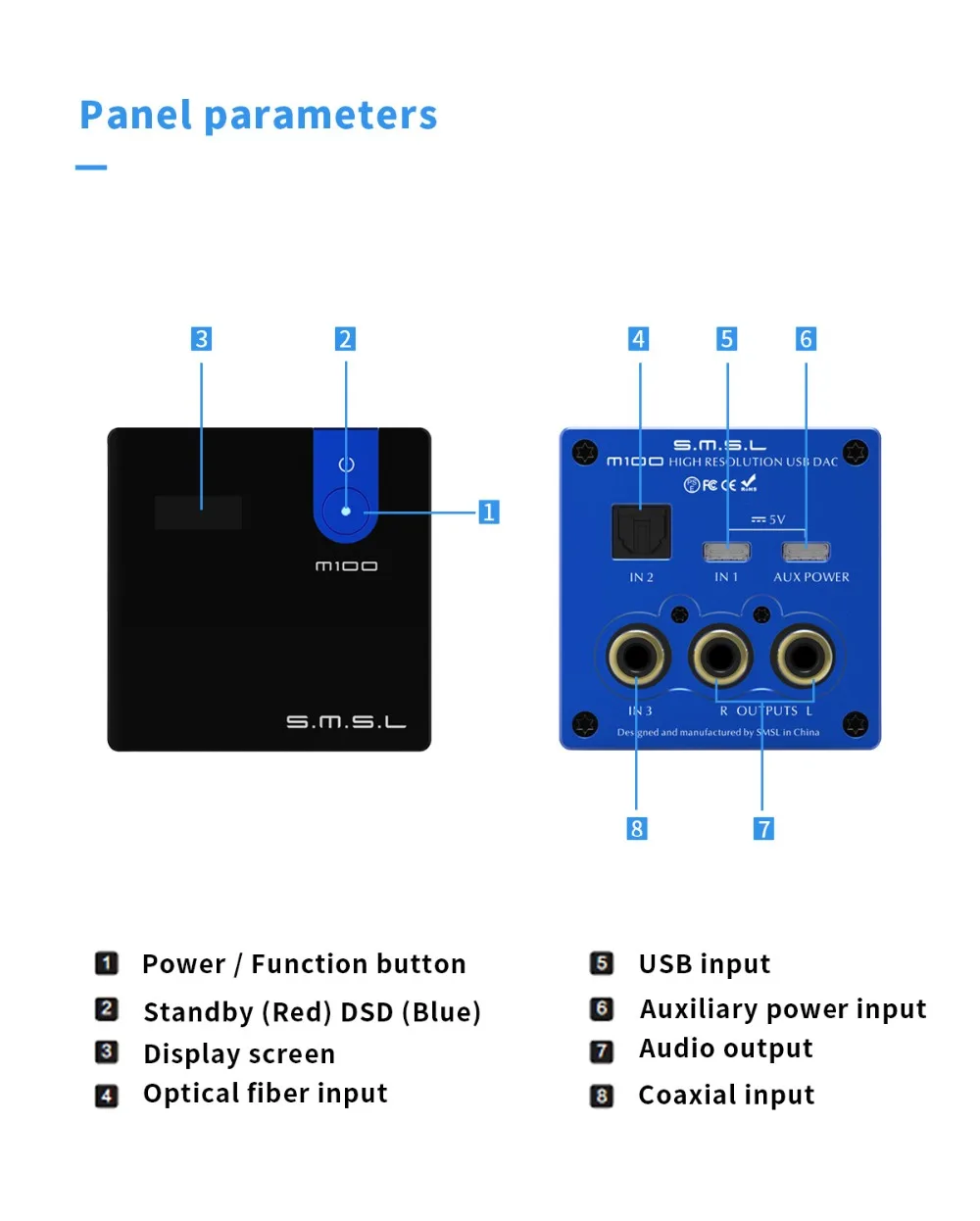

Inputs: USB Type-A
Inputs: USB Type-B
Inputs: Optical (SPDIF)
Inputs: Coaxial
PCM Sampling Frequencies: 44.1 kHz
PCM Sampling Frequencies: 48 kHz
PCM Sampling Frequencies: 88.2 kHz
PCM Sampling Frequencies: 96 kHz
PCM Sampling Frequencies: 176.4 kHz
PCM Sampling Frequencies: 192 kHz
PCM Sampling Frequencies: 352.8 kHz
PCM Sampling Frequencies: 384 kHz
PCM Sampling Frequencies: 705.6 kHz
PCM Sampling Frequencies: 768 kHz
Material: Other
Origin: CN(Origin)
Outputs: RCA
Outputs: Balanced Out
PCM Word Length: 16-bit
PCM Word Length: 24-bit
PCM Word Length: 32-bit
Model Number: SMSL M100 MKII

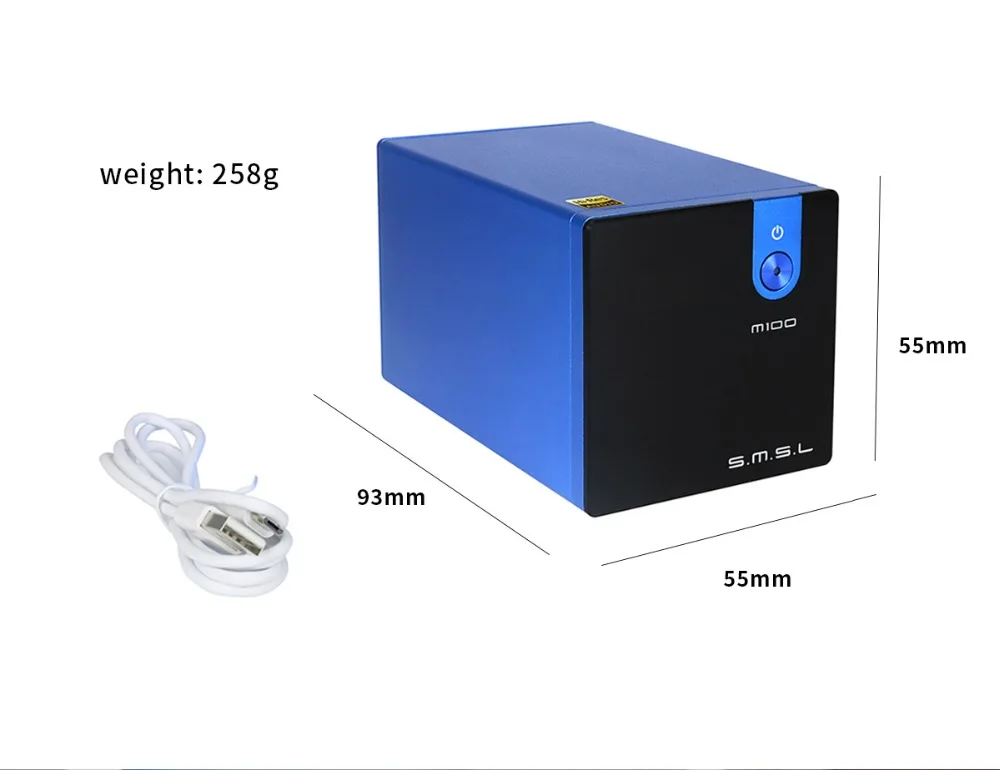

Dimensions (W x H x D): 55x55x93 mm
Bluetooth: No
D/A Converter: AK4452
WIFI: No
USB Compatibility: Windows 7
USB Compatibility: windows 8
USB Compatibility: Windows 8.1
USB Compatibility: windows 10
USB Compatibility: osx
Name: SMSL M100 MKII
THD+N: 0.0005%
